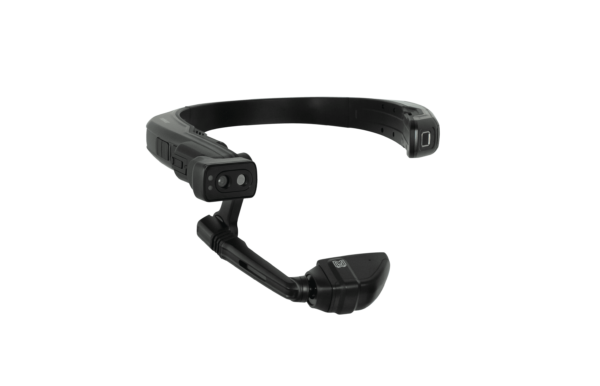

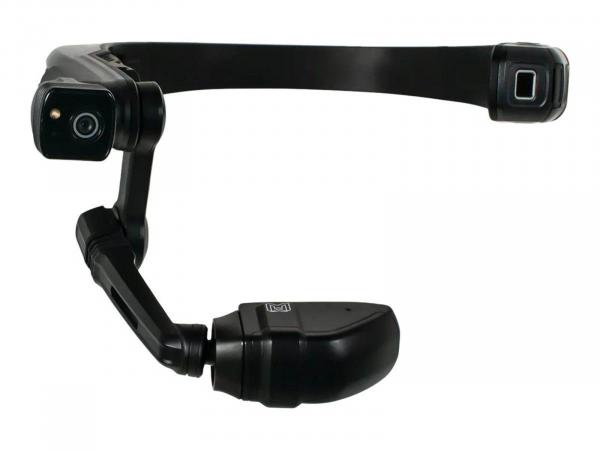

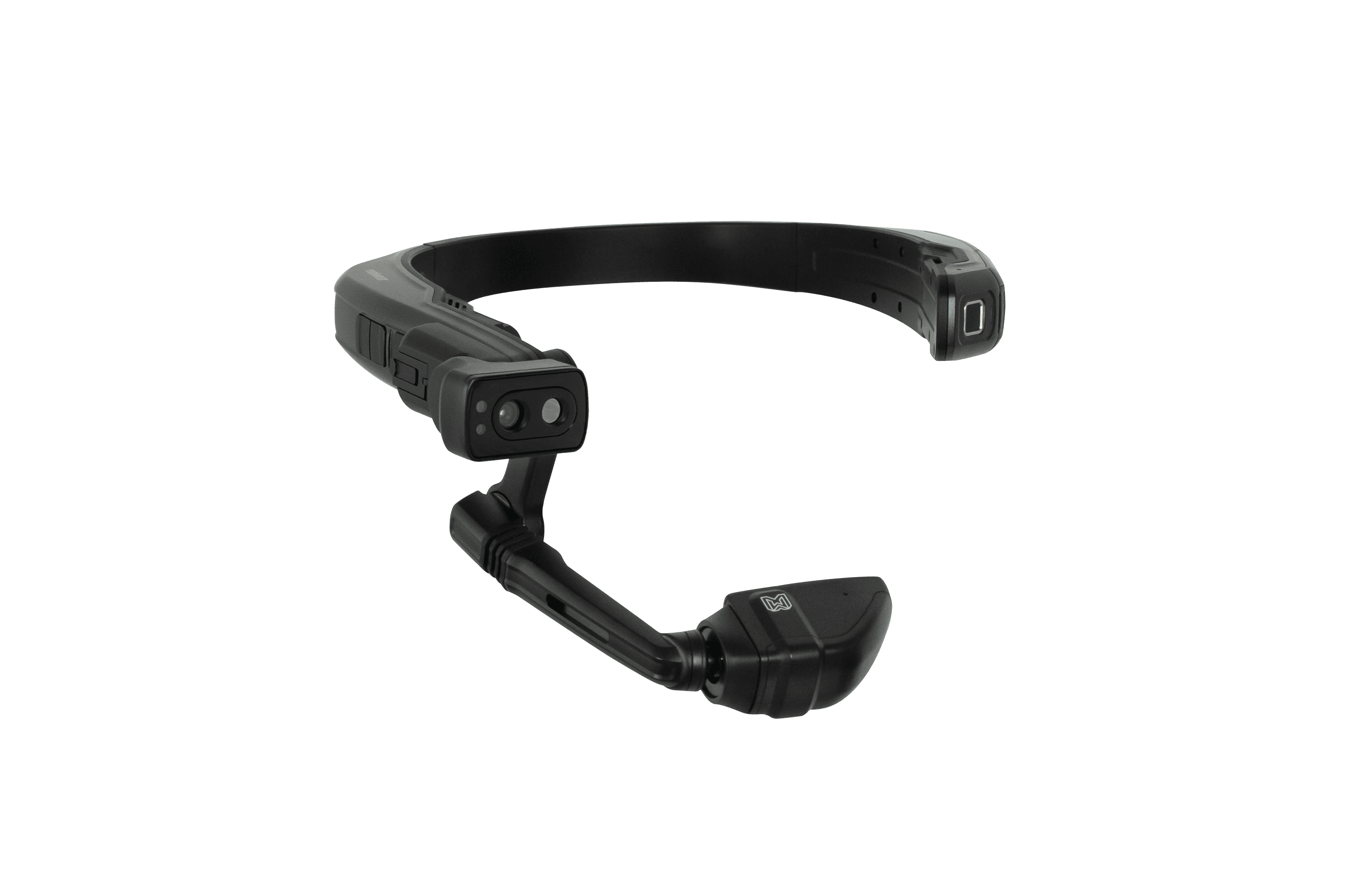

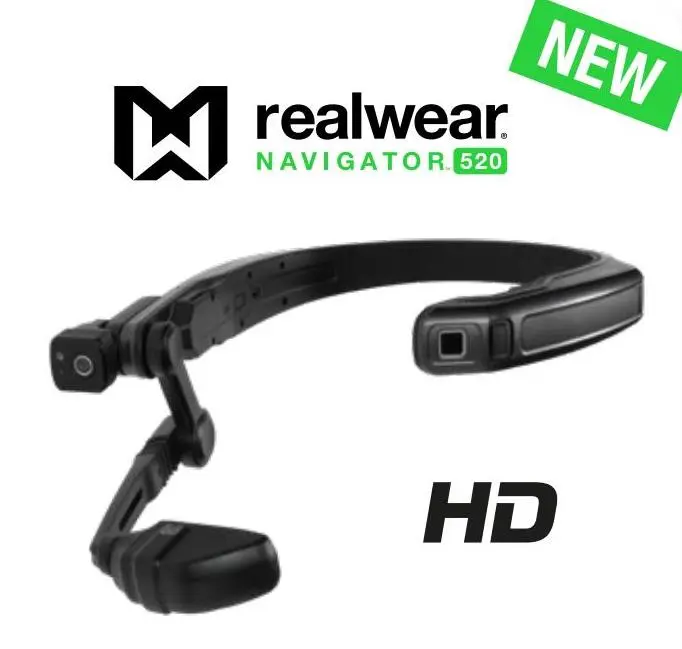

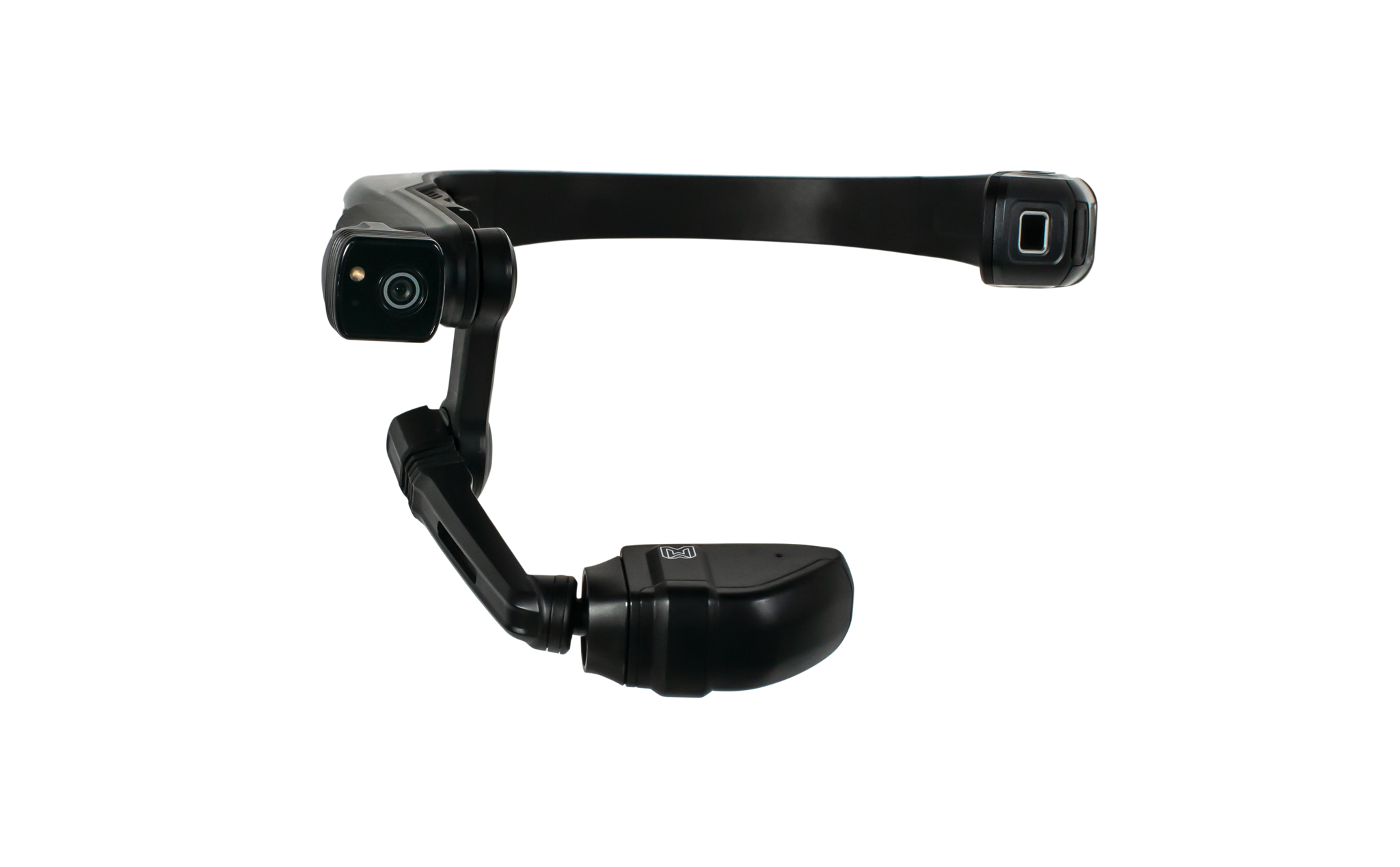

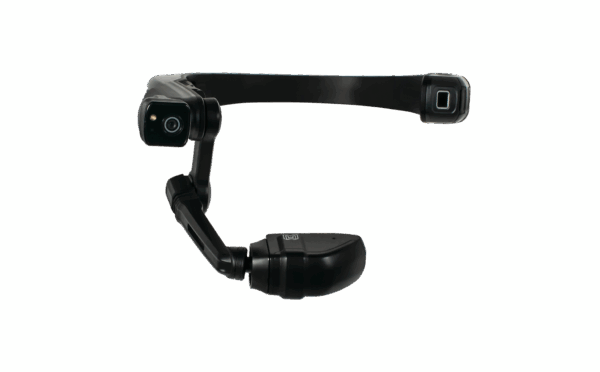

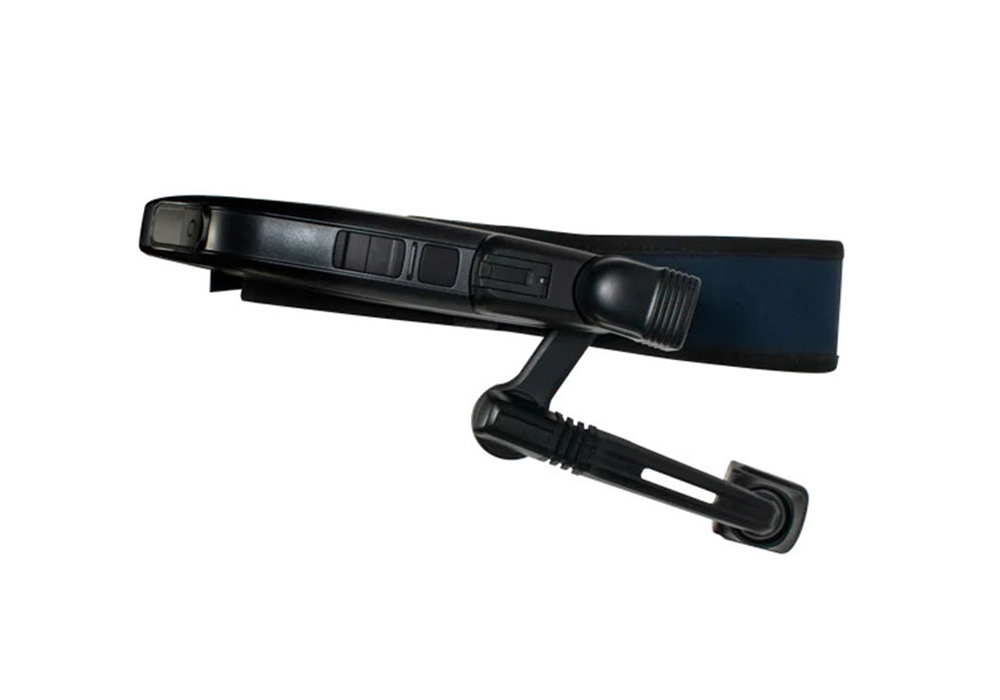

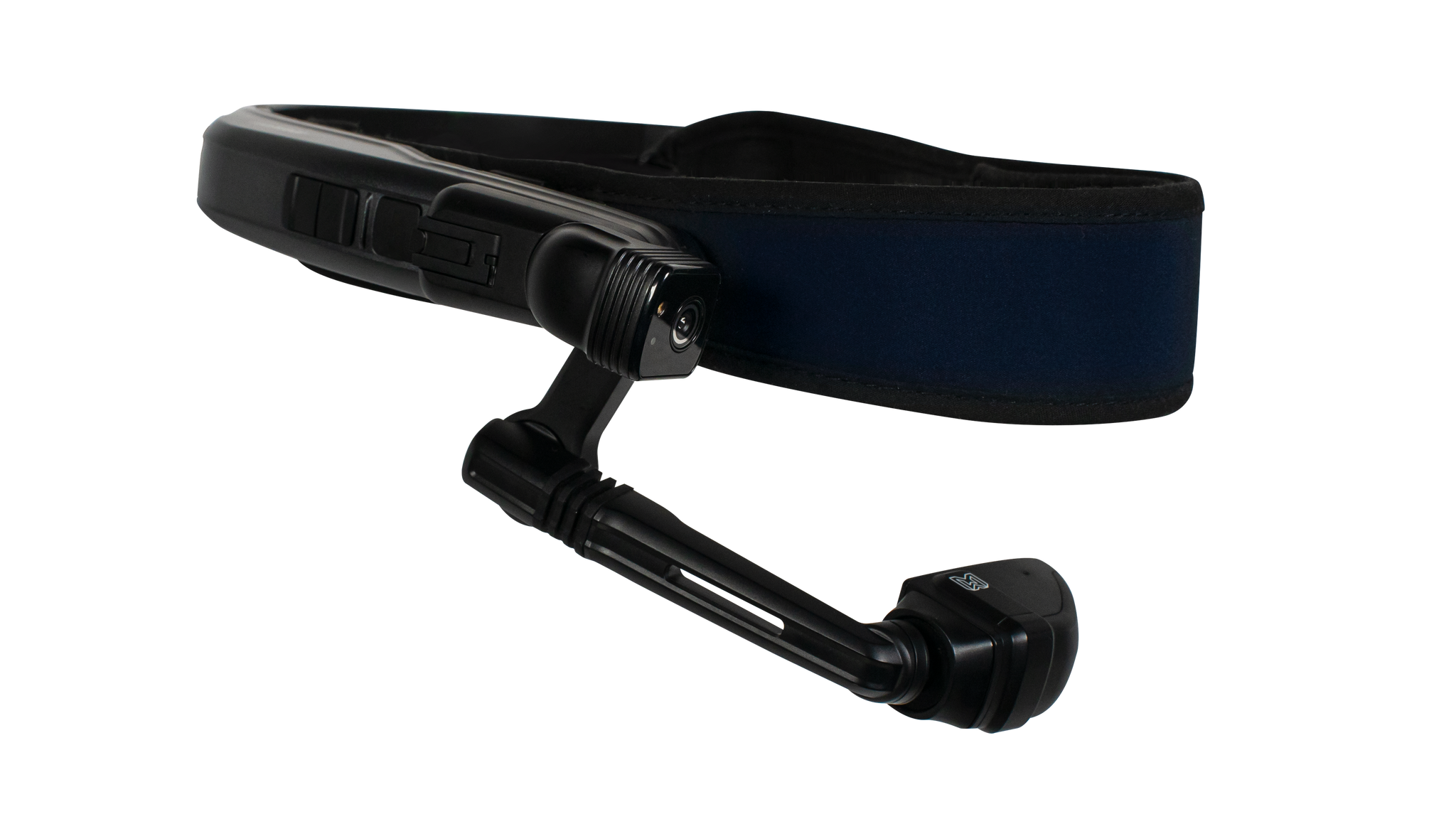

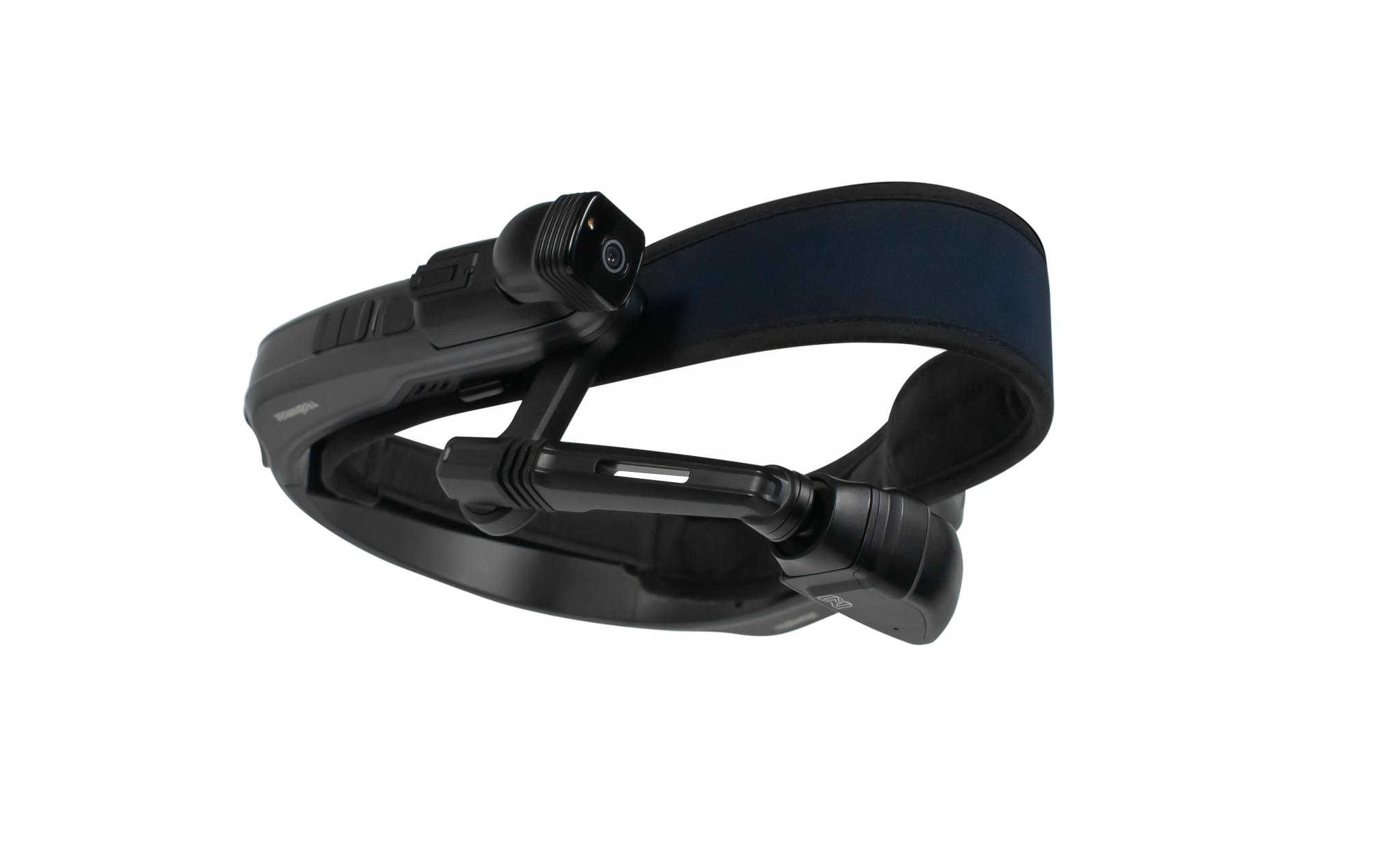

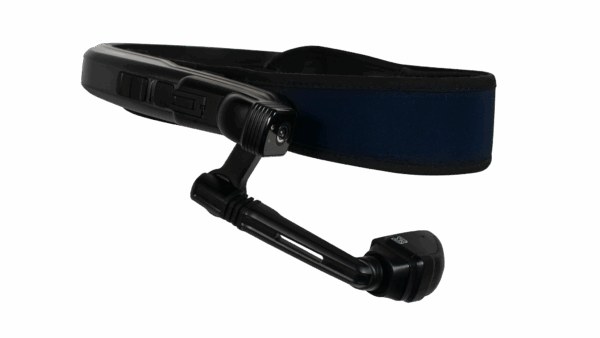

RealWear Navigator® 520

$38,000.00

The next generation industrial strength assisted reality solution

  • An Android head-mounted rugged tablet
  • The biggest screen among RealWear devices
  • Voice control via predefined commands
  • Built-in 48MP camera with optical image stabilization
  • The display is placed right in front of the user’s eye
  • Modular design
  • Spill-proof (IP66) and 2m drop-proof (MIL-STD-810H)
  • Dedicated for remote service, diagnostics, inspection, efficient documentation of procedures.

Available on backorder

-
+

Specs

Category: Availability:

Available on backorder

Description

THE BEST JUST GOT BETTER

Just when you thought frontline wearables couldn’t get any better than RealWear Navigator 500, RealWear has raised the bar with the introduction of our new improved eye box – the HyperDisplay!

Included with the new RealWear Navigator 520, the HyperDisplay offers a bigger, sharper, bolder image to make work on the frontline even better.

SEEING IS BELIEVING

RealWear Navigator 520 is the latest device in the award-winning RealWear Navigator 500 Series. Navigator 520 offers the enhanced HyperDisplay while maintaining all of the amazing features of the RealWear Navigator 500, making it our best wearable yet.

ENHANCES REMOTE COLLABORATION

Frontline Workers can easily connect with remote experts in real-time, from anywhere, using optimized video collaboration applications. Enables frontline workers to get assistance from an expert remotely to resolve any complex issue.

HANDS FREE WEARABLE DIGITAL WORKFLOW DEVICES

Digital Workflow solutions provide visual instructions, checklists, data entry, and visual documentation of completed steps while on the go. Assisted reality devices enable digital workflow to reach workers when and where they need it—improving productivity and reducing operational errors.

REVOLUTIONARY MODULAR DESIGN

Enables on-the-job agility and adaptability to support even more use cases. Optional Thermal Camera is now available.

48MP CAMERA SENSOR

RealWear Navigator® 520

Standard Mode delivers 12MP image resolution with 5 zoom levels. Great low light performance.
Telephoto Mode with enhanced zoom that delivers >6X zoom while still retaining HD quality (720p) or >4X zoom while retaining full HD quality (1080p).

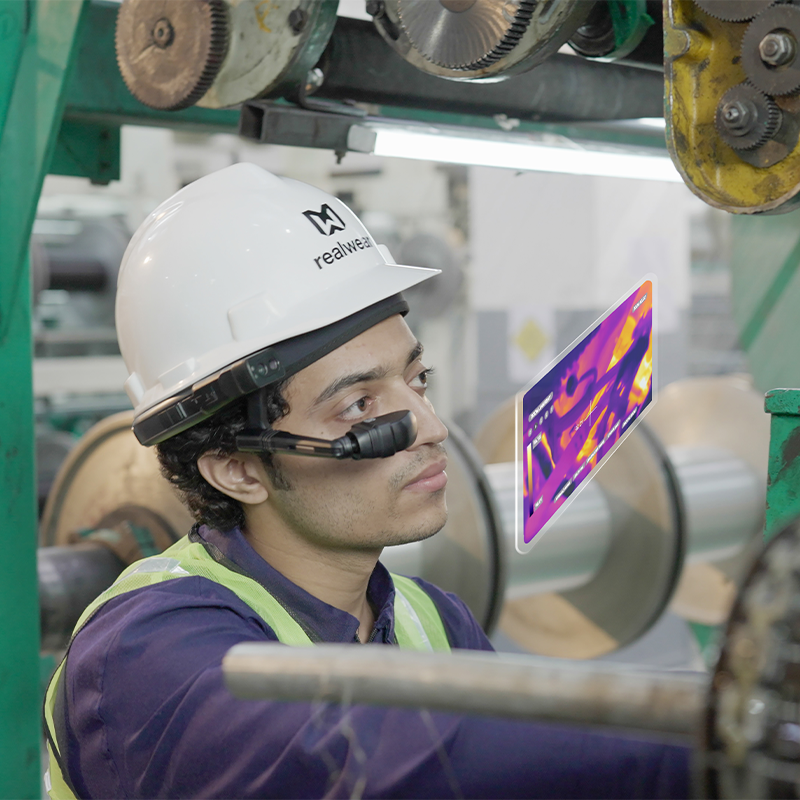

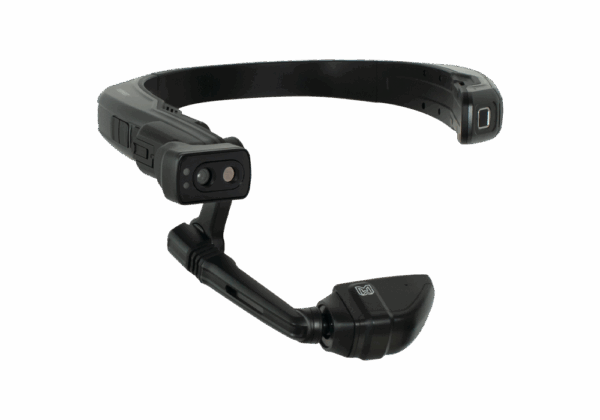

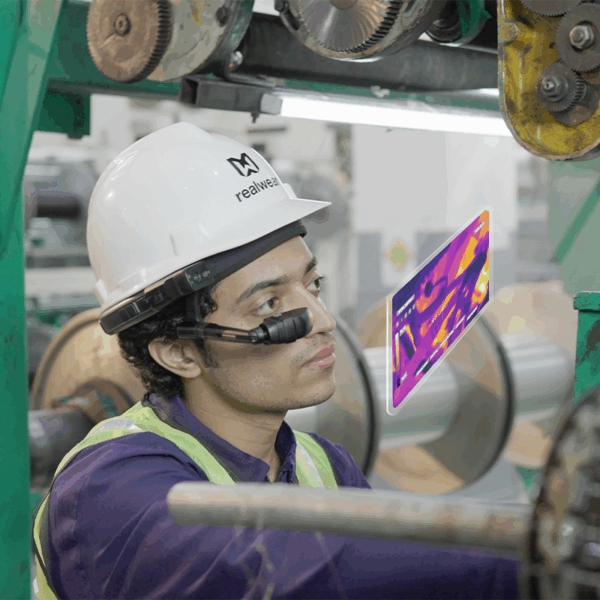

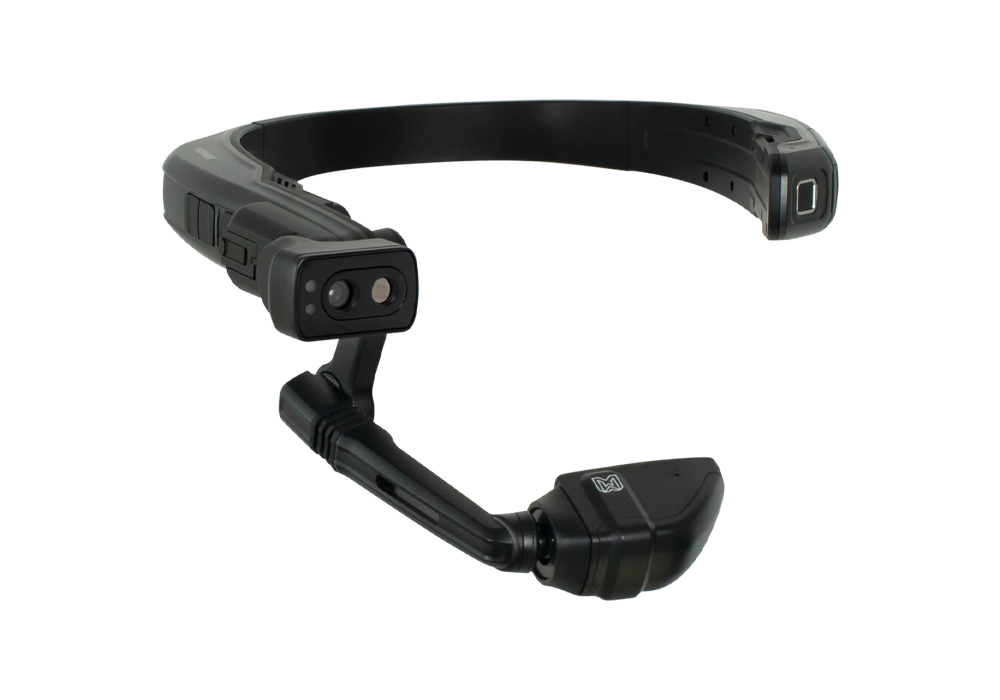

SEE THE INVISIBLE – THERMAL CAMERA MODULE*

RealWear Navigator® 520

Solve problems faster by adding fully hands-free thermal capability including MSX® Enhanced Image Mode, which adds visible light details to full thermal images for greater detail (*Thermal Camera Module is an optional accessory)















Free Your Hands®

Info
Manufacturer Realwear
Device Type Standalone Head-mounted Device
Device
Weight 274 g (Without headstrap)
Case Material Plastic

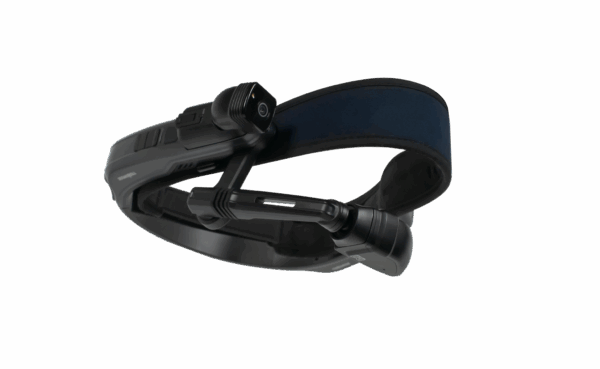

Headstrap Type Hardhat-attachable band / headband
Haptics None
Colours Option Black ONly
Compliances IP66, CSA C1-D1
Eye Tracking None
Video Output None
Optics
Passthrough 48MP 1080p 60fps camera
Display
Display Type Single LCD (monocular)
Resolution 1280x720
Visible FoV 24° (horizontal)
Tracking
Tracking Type None
Face Tracking None
Hhand Tracking None
Body Tracking None
Audio
Built-in Speakers Integrated speaker
Built-in Microphone Yes
3.5mm Headphone Jack Yes
Connectivity
Ports USB Type-C
WI-FI WIFI
Bluetooth Yes
System
Operating System Android 11
Chipset Qualcomm Snapdragon 662
CPU Core Octa-core Kryo 260 (4 x 2 GHz, 4 x 1.8 GHz)
GPU Adreno 610
Storage
Memory (RAM) 4GB RAM
SD Card Slot YES
Data Storage 64GB
Battery
Basttery Capacity 2600 mAh (Hot-swappable battery)
Battery Life 8 Hours
